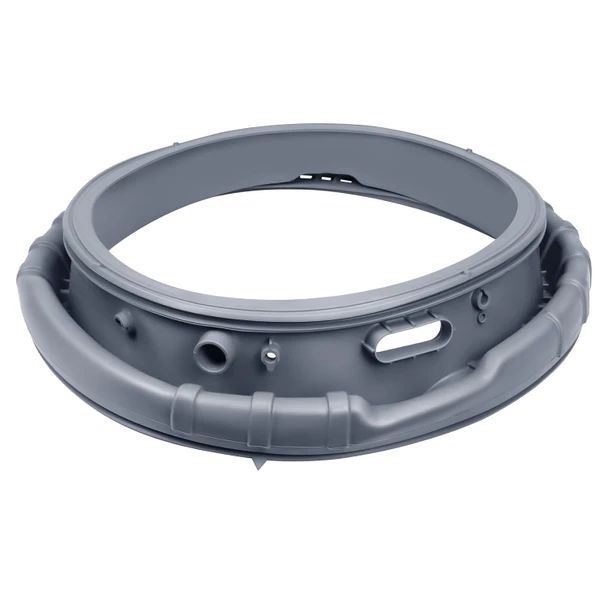

DC64-02805A Washer Door Gasket Boot Seal Compatible with Samsung WF393BTPARA/A2

The DC64-02805A washer door gasket (AP5621578), also called the door boot seal, is compatible with Samsung front load washers, including the WF393BTPARA/A2. The gasket forms a watertight seal between the door and the tub opening. A torn, stretched or moldy boot can let water leak onto the floor during the wash or spin cycle and can hold odors in the folds.

Common signs you need this part

• Water leaks from the bottom front of the washer during a cycle
• Gasket is torn, punctured or split
• Mold or mildew in the folds won't clean off
• Musty odor stays in the drum and on clothes
• Door doesn't seal tightly or the gasket has come loose from its clamp

Replaces part numbers

• DC97-17041A
• 2813214
• PS4211765

Compatible models

WF393BTPARA/A1-00, WF393BTPARA/A1-0001, WF393BTPARA/A1-01, WF393BTPARA/A2-00, WF393BTPARA/A2-0000, WF393BTPAWR/A1-00, WF393BTPAWR/A1-0000, WF393BTPAWR/A1-0001, WF393BTPAWR/A1-01, WF393BTPAWR/A2 (0000), WF393BTPAWR/A2-00, WF395BTPARA/A1 (0000), WF395BTPARA/A1-00, WF395BTPARA/A2 (0000), WF395BTPARA/A2-00, WF395BTPASU/A1 (0000), WF395BTPASU/A1 (0001), WF395BTPASU/A1-00, WF395BTPASU/A1-01, WF395BTPASU/A2 (0000), WF395BTPASU/A2-00, WF395BTPAWR/A1-0001, WF395BTPAWR/A1-01, WF395BTPAWR/A2-00, WF395BTPAWR/A2-0001, WF395BTPAWR/A2-01, WF405ATPASU/A2 (0000), WF405ATPASU/A2-00, WF405ATPASU/AA-0000, WF405ATPASU/AA-0001, WF405ATPASU/AA-01, WF405ATPAWR/A2 (0000), WF405ATPAWR/A2-00, WF405ATPAWR/AA-0000, WF405ATPAWR/AA-0001, WF405ATPAWR/AA-01

If you don't see your model number, please contact us.

Specifications

• Part number: DC64-02805A (AP5621578)
• Type: front load washer door gasket / boot seal
• Compatible with: Samsung washers

Installation tips

• Remove the outer spring clamp first, then the inner clamp that holds the boot to the tub.
• Line up the gasket's drain holes and alignment marks with the tub before you seat it.
• Run a short rinse cycle and check for leaks before doing a full load.
• Wipe the gasket dry after use and leave the door open to help prevent mold.
• Safety: Unplug the washer and shut off the water supply before you start.
