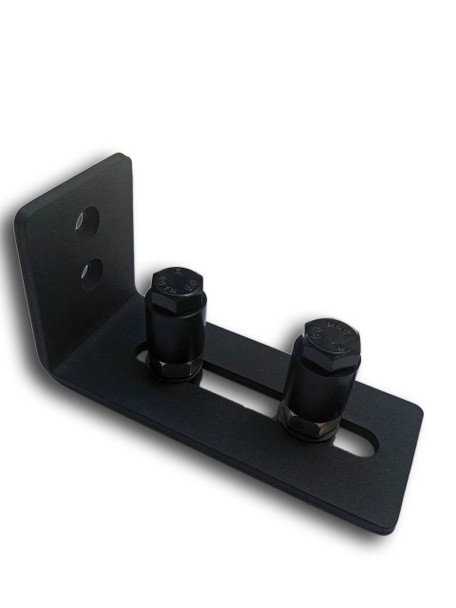

Adjustable Wall Flat Stay Roller Guide Bottom Floor Sliding Barn Door

(No reviews yet) Write a Review
(You save $15.61 )

Adding to cart… The item has been added
0.70 LBS
Calculated at Checkout


Material: Black powder coated steel frame & rollers
Whole Dimension: 4.88 x 1.97 x 2.6 inch / 12.4 x 5 x 6.6 cm (L x W x H)
Thickness of the Metal: 0.2 inch / 0.5 cm
Each Roller Diameter: 0.79 inch / 2 cm
Max. Door Thickness: 2.05" / 5.2 cm

The distance between wall and door should be at least 1.61" / 4.1cm. If it is less than that, you can remove one roller to use it as a one-roller guide.
The distance between door bottom and floor should be at least 0.35" / 0.9cm.

Installation Method:

1. Make sure the clearance from your door bottom to floor is greater than 0.35"/0.9cm.
2. Put the floor guide under the door, door between the 2 rollers.
3. Measure the safety distance and mount the floor guide onto wall using the provided screws.
4. Adjust the rollers to make sure enough space is left for the door to slide inside. Tighten the adjustment nut and you are ready to glide!

Package includes:

1 x Floor Guide
2 x M6*40 Screws
2 x White Ribbed Plastic Anchors
